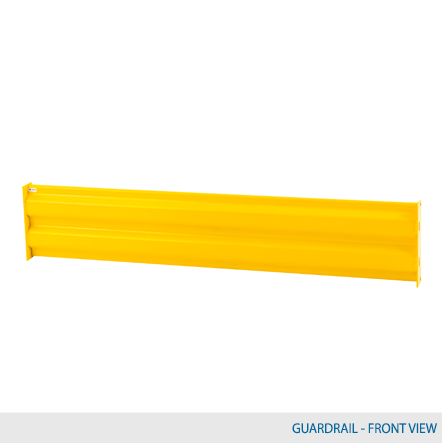

Heavy-Duty Guardrail - Rails

Rails are made of roll-formed 13-gauge structural steel. The durability of the steel meets the requirements indicated by the ASTM A1011 Grade 45.

Available in various lengths ranging from 19” to 115” and are sized for the following center- to-center dimensions: 12”, 24”, 36”, 48”, 60”, 72”, 8”, 96”, 108” or 120”. Custom lengths are also available. Powder-coated safety yellow paint finish.

When properly installed, heavy-duty guardrails are engineered to withstand a 10,000 lb. impact at 4 mph.

Lifetime Structural Warranty

Guardrails are assembled either individually or in pairs according to column height. The standard 12” high rail is welded to two 12 1/2” x 3” plates on each side. These plates are punched with two 9/16” connection holes and bolted to the column using Ø1/2” x 7” carriage bolts.

  • Click here to download Printer Friendly Summary (PDF).
  • Click here to download the guardrail crash test report (PDF).

Please consult the table below for a complete list of dimensions.
