Heavy-Duty Guardrail - Lift Out Brackets

Lift-out brackets allow the rails to be lifted out rather than being bolted to the posts. The lift-out brackets are sold in pairs, one for the right of the guardrail and one for the left. The brackets are attached to the column using 5/16”Ø x 5 1/2” carriage bolts with a washer and “T” nut.

Limited Lifetime Warranty

Heavy-Duty Guardrail - Lift Out Brackets

  • Click here to download Printer Friendly Summary (PDF).

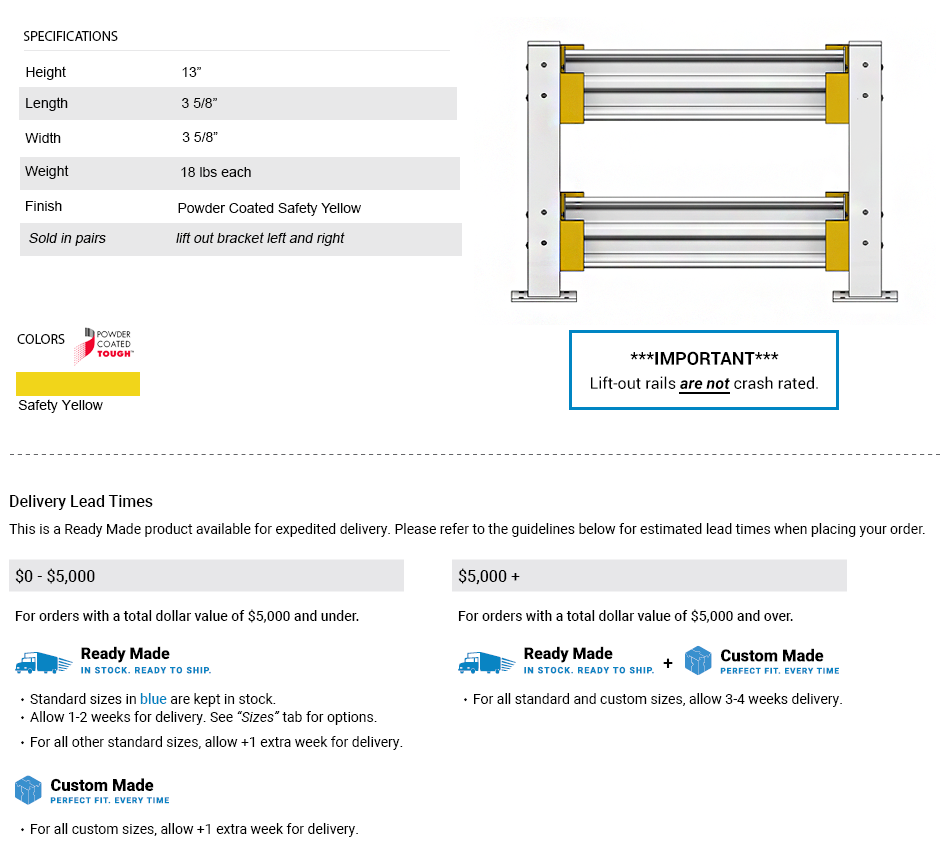

Please consult the table below for a complete list of dimensions.
