Original Wire Mesh Partitions - Single Swing Gate

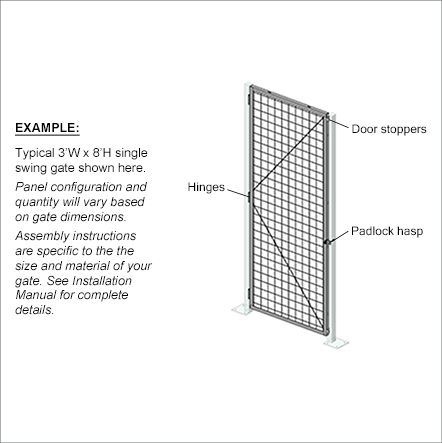

All single swing gates are equipped with a padlock hasp, hinges and door stoppers. Gates can be hinged in for different orientations (opening inwards or ouwards / swing left or right). Additional lock options are also available. Doors are made of 2” x 2” x 10 GA welded wire mesh framed in 1 1/4” x 1 1/4” x 12GA structural angle with two welded 1/2” ø reinforcement rods from center to the corner.

Lifetime Structural Warranty

Original Wire Mesh Partitions - Single Swing Gate

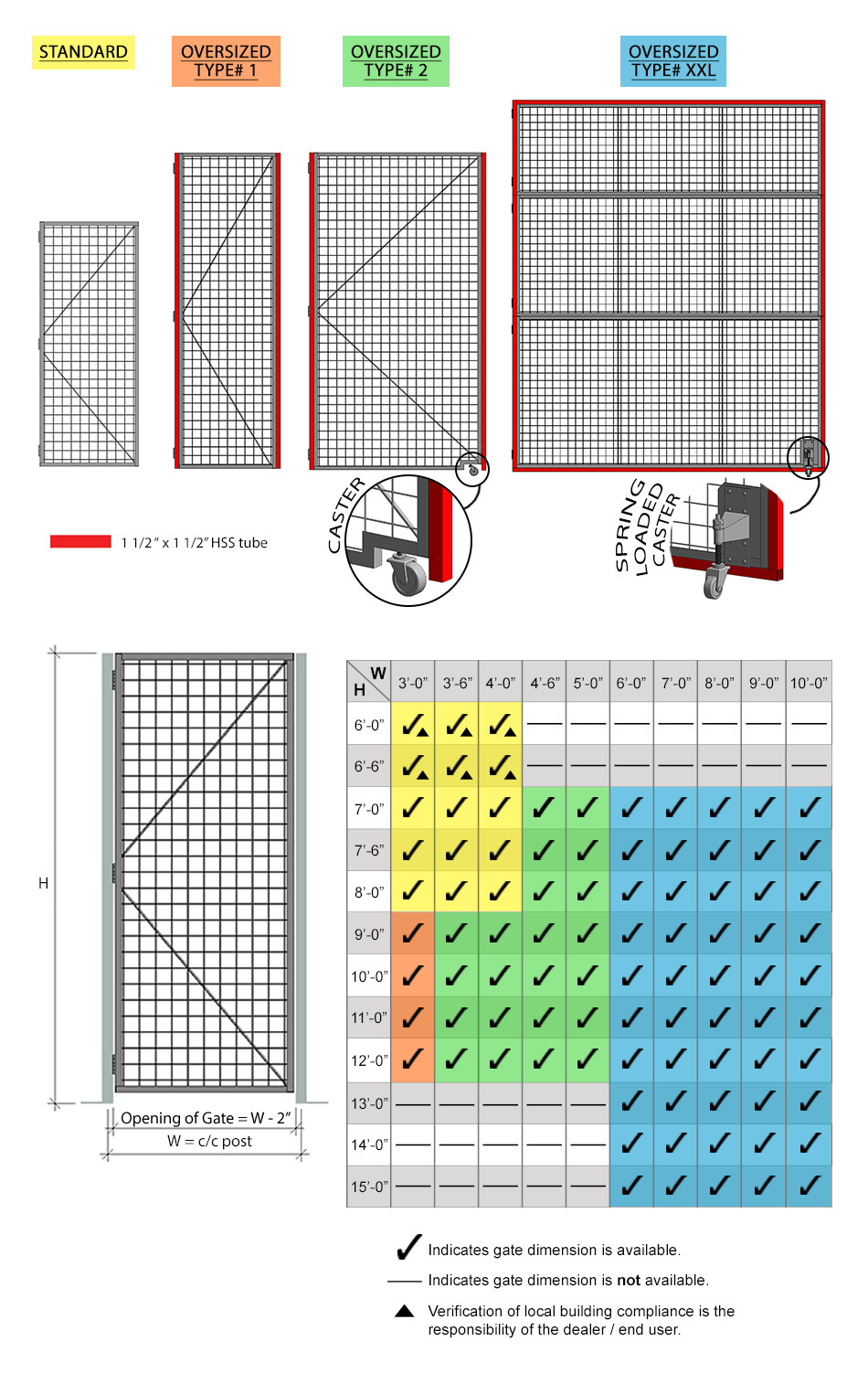

Standard, Oversized Type #1 and Oversized Type #2 are assembled at Cogan. Oversized Type XXL is assembled by the installer in place (Refer to the installation manual for reference). See size tab for more information.

  • Click here to download Printer Friendly Summary (PDF).

Please consult the table below for a complete list of dimensions.

Below are the standard cylinder lock options for our partition security gates. Choose between a latch and key, or keys on both sides for added security.
