What Is an Industrial Mezzanine?

An industrial mezzanine is an intermediate floor system installed between a building's existing floor and ceiling, designed to create additional usable space without expanding the building's footprint. Unlike traditional construction, a mezzanine is a freestanding steel structure that can be engineered to support specific loads, integrated into existing operations, and even relocated as your needs change.

Mezzanines are commonly used in warehouses, distribution centers, manufacturing plants, and commercial facilities to effectively double or even triple available floor space. They represent one of the most cost-effective solutions for businesses that need more room but want to avoid the expense and disruption of building an addition or moving to a larger facility.

At Cogan, we have been engineering and manufacturing custom industrial mezzanines in Canada for decades. Every mezzanine we produce is designed by our in-house engineering team to meet your exact specifications, local building codes, and load requirements, backed by our lifetime structural warranty.

Types of Industrial Mezzanines

Industrial mezzanines come in several configurations, each suited to different operational needs. Understanding the types available helps you choose the right solution for your facility.

Structural Steel Mezzanines

Structural steel mezzanines are the most common and versatile type. Built with hot-rolled steel columns and beams, they are engineered to support heavy loads ranging from 125 to 500+ pounds per square foot (PSF). These mezzanines are ideal for warehousing, manufacturing, and heavy-duty storage applications where durability and load capacity are critical.

Cogan's structural steel mezzanines are custom-designed for each project, ensuring optimal column placement that works around your existing equipment, racking, and workflow.

Free-Standing Mezzanines

Free-standing mezzanines are self-supporting structures that do not require attachment to the building's walls or columns. This makes them ideal for facilities where you cannot or do not want to modify the existing building structure. They can be disassembled and relocated to a new location, making them a flexible long-term investment.

Rack-Supported Mezzanines

Rack-supported mezzanines integrate directly with your pallet racking system, using the racking uprights as the structural support for the mezzanine floor above. This design maximizes vertical space utilization by combining storage and elevated floor area in a single footprint. They are particularly effective in distribution centers with high ceilings.

Shelving-Supported Mezzanines

Similar to rack-supported designs, shelving-supported mezzanines use industrial shelving units as the base structure. These are typically used for lighter-duty applications such as parts storage, e-commerce fulfillment, and record archiving, where the combination of shelving below and work or storage space above creates maximum efficiency.

Key Benefits of Industrial Mezzanines

Industrial mezzanines offer significant advantages over traditional building expansion. Here are the primary benefits that make them a preferred solution for growing businesses.

Double Your Floor Space Without Expanding

The most immediate benefit of a mezzanine is the ability to create additional floor space within your existing building envelope. A well-designed mezzanine can effectively double the usable area of the space it occupies, without the need for new construction, zoning approvals for building expansion, or the disruption of relocating to a larger facility.

Cost-Effective Compared to Building Expansion

Installing a mezzanine typically costs 50 to 70 percent less than constructing a building addition or leasing additional warehouse space. When you factor in the avoided costs of land acquisition, foundation work, roofing, and extended construction timelines, a mezzanine delivers one of the highest returns on investment of any facility improvement.

Fast Installation with Minimal Disruption

Most mezzanine installations can be completed in days rather than months. Because mezzanines are prefabricated in our facility and shipped as modular components, on-site installation is fast and can often be scheduled during off-hours to minimize impact on your daily operations.

Modular and Relocatable

Unlike permanent construction, free-standing mezzanines can be disassembled, expanded, or relocated as your business needs evolve. This flexibility means your investment in a mezzanine adapts with your business rather than becoming a fixed constraint.

Backed by a Lifetime Structural Warranty

Cogan mezzanines are built to last. We stand behind every mezzanine we manufacture with a lifetime structural warranty, giving you confidence that your investment is protected for the long term. This warranty reflects our commitment to engineering excellence and the quality of Canadian-made steel fabrication.

Common Applications for Industrial Mezzanines

Mezzanines serve a wide range of industries and facility types. Here are the most common applications where they deliver significant value.

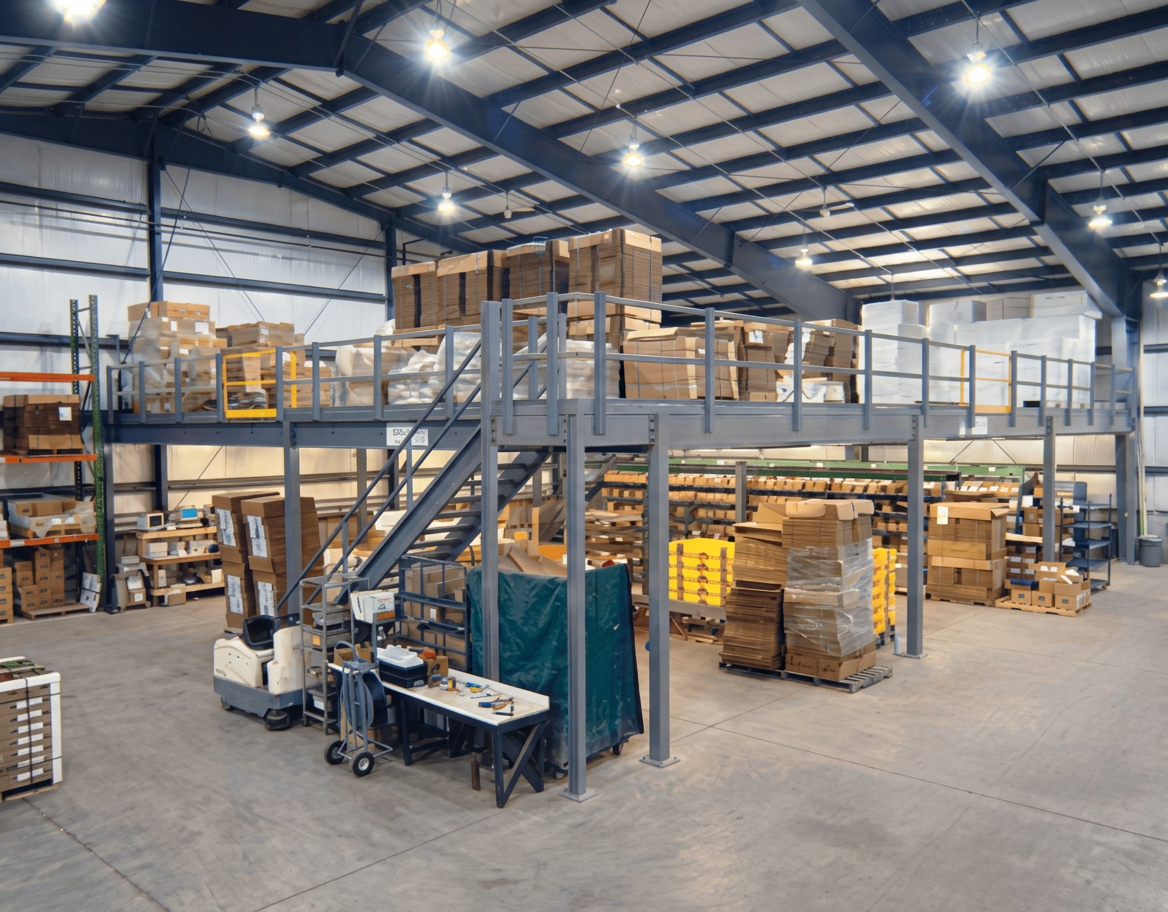

Warehousing and Distribution

Mezzanines are widely used in warehouses and distribution centers to create additional storage levels, pick-and-pack stations, or sorting areas above existing floor operations. They allow you to expand storage capacity without the cost of additional warehouse space. Learn more about our warehouse mezzanine solutions.

Manufacturing Facilities

In manufacturing environments, mezzanines provide elevated platforms for equipment, control rooms, quality inspection stations, and parts storage. They can be engineered with specific load ratings to support heavy machinery and designed with openings for conveyor systems and material handling equipment.

In-Plant Offices

Mezzanines are frequently used to create elevated office space within warehouses and factories, providing supervisory oversight of floor operations while freeing up valuable ground-level space for production or storage. These offices can include climate control, sound insulation, and full electrical service.

Retail and Commercial

Retail stores, automotive dealerships, fitness centers, and entertainment venues use mezzanines to maximize their customer-facing space. A retail mezzanine can add a second level for merchandise display, seating, or specialized departments without the cost of a larger lease.

Automotive and Parts Storage

Automotive dealerships, parts distributors, and service centers use mezzanines to create organized parts inventory systems that keep high-turnover items accessible while moving slower-moving inventory to elevated storage. This improves picking efficiency and floor space utilization.

Engineering and Design Considerations

A properly engineered mezzanine is essential for safety, code compliance, and operational efficiency. Here are the key factors that must be considered during the design phase.

Load Capacity Requirements

The most critical design factor is the required load capacity, measured in pounds per square foot (PSF). Common load ratings include:

• 125 PSF - Light-duty storage, office space, and personnel areas
• 250 PSF - Medium-duty storage, shelving systems, and general warehousing
• 500+ PSF - Heavy-duty applications, equipment platforms, and manufacturing areas

Cogan engineers assess both the uniform live load (evenly distributed weight) and concentrated point loads (heavy equipment or racking at specific locations) to ensure the mezzanine structure meets all requirements.

Column Placement and Clear Span

Column locations must be carefully planned to avoid interfering with existing equipment, racking, dock doors, and traffic lanes. Cogan's engineering team works with your facility layout to optimize column placement, and we can design clear spans of 20 feet or more when needed to minimize column interference.

Clear Height Above and Below

The mezzanine must provide adequate clear height both above and below the platform for the intended use. Building codes typically require a minimum of 7 feet of clear height in occupied areas. The available ceiling height in your building determines the feasible mezzanine height and the usable space on both levels.

Access: Stairs, Gates, and Lifts

Every mezzanine requires proper access systems. Options include industrial stairways, safety gates for material loading, and vertical lifts for moving product between levels. The number and placement of access points should be based on traffic flow and emergency egress requirements.

Building Code Compliance

Industrial mezzanines must comply with local building codes, fire codes, and occupancy requirements. This includes structural calculations stamped by a professional engineer, guardrail heights and specifications, fire sprinkler requirements, and egress provisions. Cogan provides complete engineering packages with stamped drawings for permit submission.

Flooring Options

Mezzanine flooring is selected based on the application. Common options include bar grating (allows light, air, and sprinkler water to pass through), steel diamond plate (solid surface for heavy loads), resin deck (smooth surface for carts and foot traffic), and plywood composite (economical option for lighter applications).

Why Choose Cogan for Your Mezzanine Project

Selecting the right manufacturer is as important as selecting the right mezzanine design. Here is what sets Cogan apart in the industry.

Lifetime Structural Warranty

Every Cogan mezzanine comes with a lifetime structural warranty. This is not a limited warranty with fine print but rather a straightforward commitment to the structural integrity of our products. We engineer and build our mezzanines to last the lifetime of your facility.

Canadian Manufacturing Excellence

All Cogan mezzanines are designed and manufactured in Canada at our facility in Marieville, Quebec. This means shorter lead times for Canadian customers, products built to Canadian standards, and the quality that comes from a vertically integrated manufacturing operation where we control every step of the process.

Custom Engineering for Every Project

We do not sell off-the-shelf mezzanines. Every Cogan mezzanine is custom-engineered by our in-house team to fit your specific facility dimensions, load requirements, access needs, and operational workflow. Our engineers work directly with you and your contractor to ensure the final design is optimal.

Complete Product Ecosystem

Beyond mezzanines, Cogan manufactures a full range of complementary products including safety gates, guardrails, industrial stairways, and mezzanine flooring. This means you get a fully integrated solution from a single source, simplifying your project and ensuring all components work together.

Fast Turnaround

Our streamlined manufacturing process and strategic inventory management allow us to deliver faster lead times than many competitors. From engineering approval to shipment, we work to get your mezzanine installed and operational as quickly as possible.
