Cantilever Lumber Storage Racks: Planning a Lumber-Yard Layout

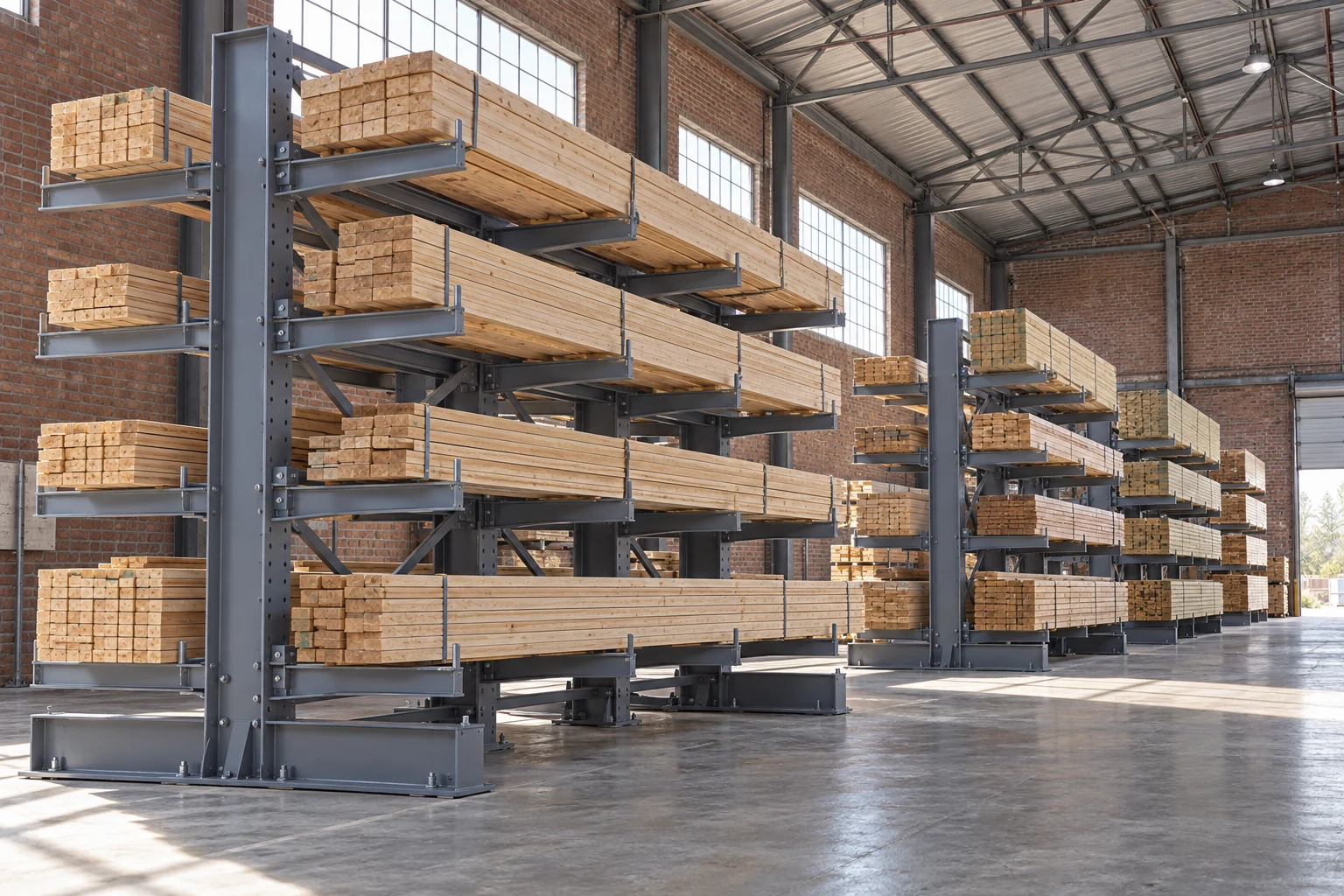

Cantilever racks provide open-front storage for long materials such as lumber. A useful lumber-yard layout starts with the stock lengths, bundle weights, picking method and exposure to weather. Rack dimensions should follow that information, rather than treating every lumber bundle as interchangeable.

Build a stock profile

List the lengths and bundle sizes handled regularly, then identify the occasional items that still need accommodation. Record the heaviest load in each storage position and how the load changes when material is picked from an opened bundle. Include the method used to keep material organized and supported.

Separate high-frequency stock from slow-moving lengths in the layout exercise. The storage objective is not simply to fit the greatest number of bundles into a drawing. Operators also need to identify, reach and retrieve material without unnecessary reshuffling.

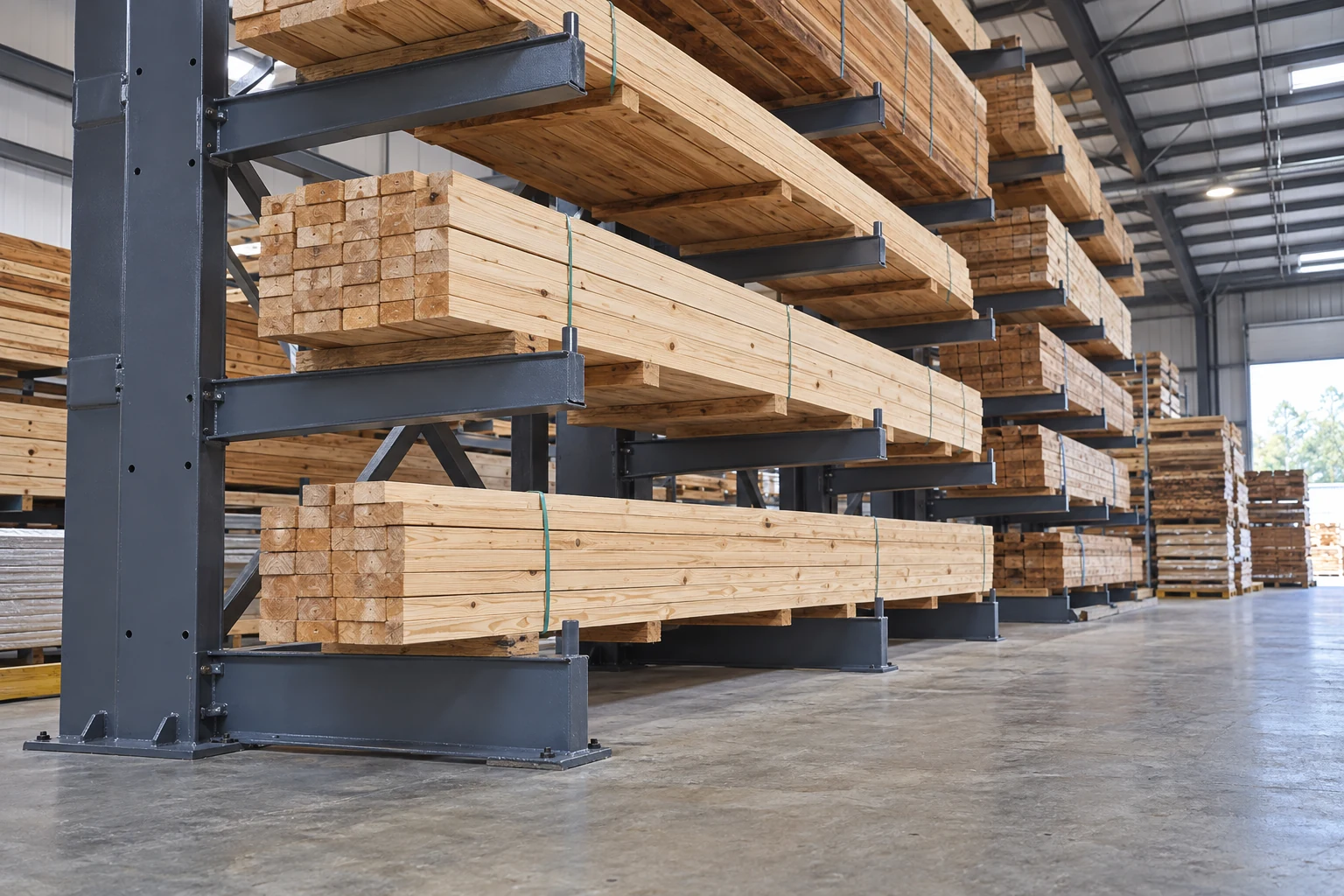

Match the supports to the material

Long stock needs a support arrangement suited to its stiffness and length. Ask the rack supplier to review support quantity, spacing and arm selection against the load information. There is no single support spacing that works for every lumber product and bundle.

Cogan's cantilever family uses structural components and bolted connections, with different arm lengths and column configurations. Straight or inclined arms and stopper options are available. Select accessories for the actual material; do not treat a stopper as permission to overfill or improperly support a load.

Plan the handling envelope

Check aisles with the selected handling equipment and its loads. Avoid copying a generic aisle width from an unrelated warehouse. A long bundle may govern the manoeuvre even when the truck itself appears to fit easily.

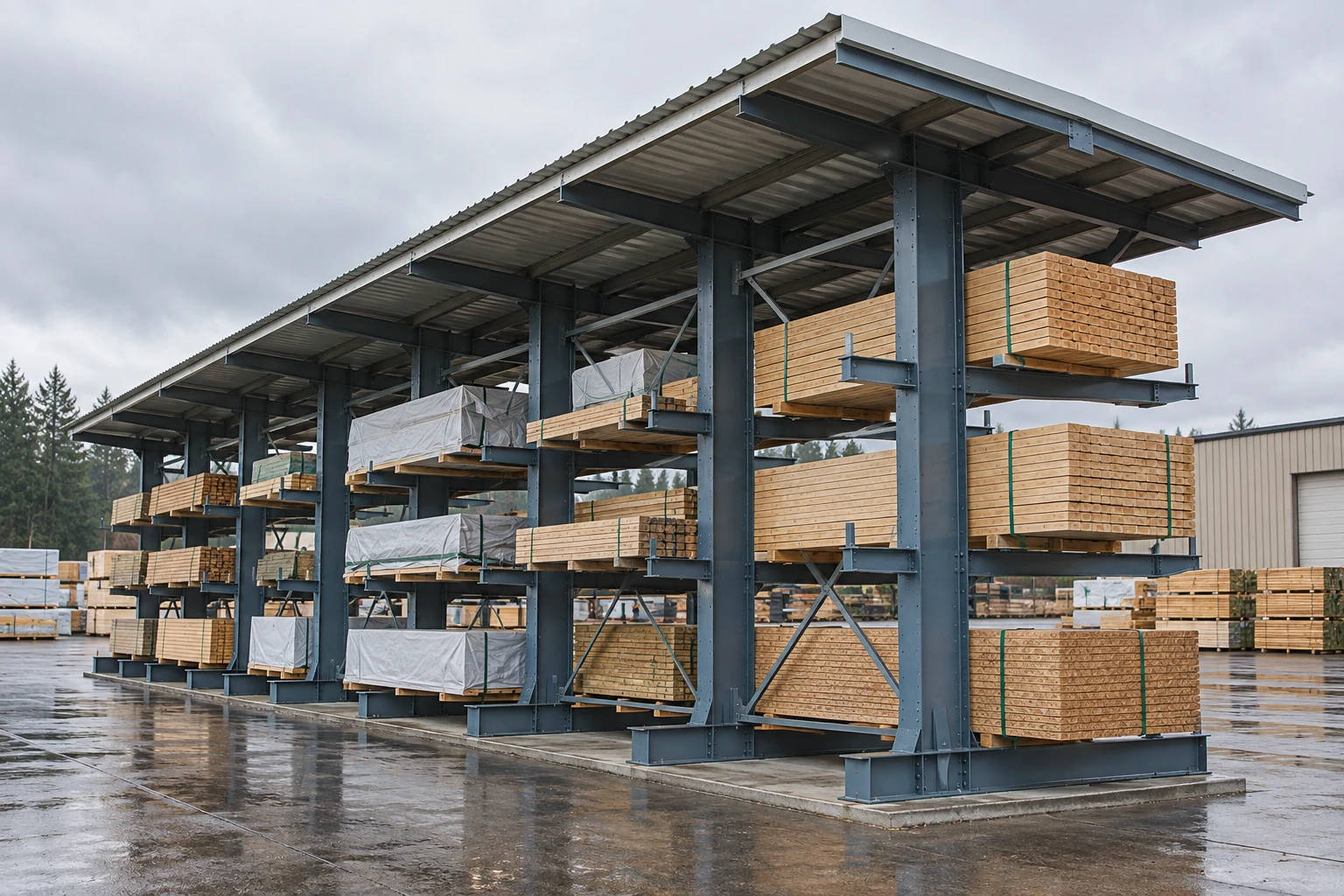

Resolve outdoor requirements early

Outdoor storage needs a discussion about finish, the support surface, drainage and local exposure. If covered storage is needed, discuss a designed rack-supported roofing arrangement rather than adding a canopy to a rack after purchase.

Cogan offers L- and T-shed roofing systems within its cantilever range. Their suitability depends on the project. Obtain the appropriate design information for the location and do not assume an indoor rack can become an outdoor covered installation without review.

Questions buyers ask

Can one rack hold different lumber lengths?

It may, provided each intended load has an approved support and capacity arrangement. Give the supplier the full stock profile.

Are cantilever racks only for full bundles?

The intended storage and picking method should be reviewed. Opened bundles and individual pieces may require different operating arrangements.

Should I order the roof later?

Discuss it during design if covered storage is anticipated. It can affect the overall structural and site requirements.

Product references and next step

See Cogan cantilever racking and L- or T-shed roofing. Share your stock profile and site plan in a quote request.
