Narrow-Aisle Cantilever Racking: Check the Truck Before the Aisle

Very narrow aisle cantilever racking is a coordinated storage and handling arrangement. The truck, its load, the guide system and the rack layout must work together. Select the handling approach before committing to an aisle width; a narrow drawing alone does not establish a workable warehouse.

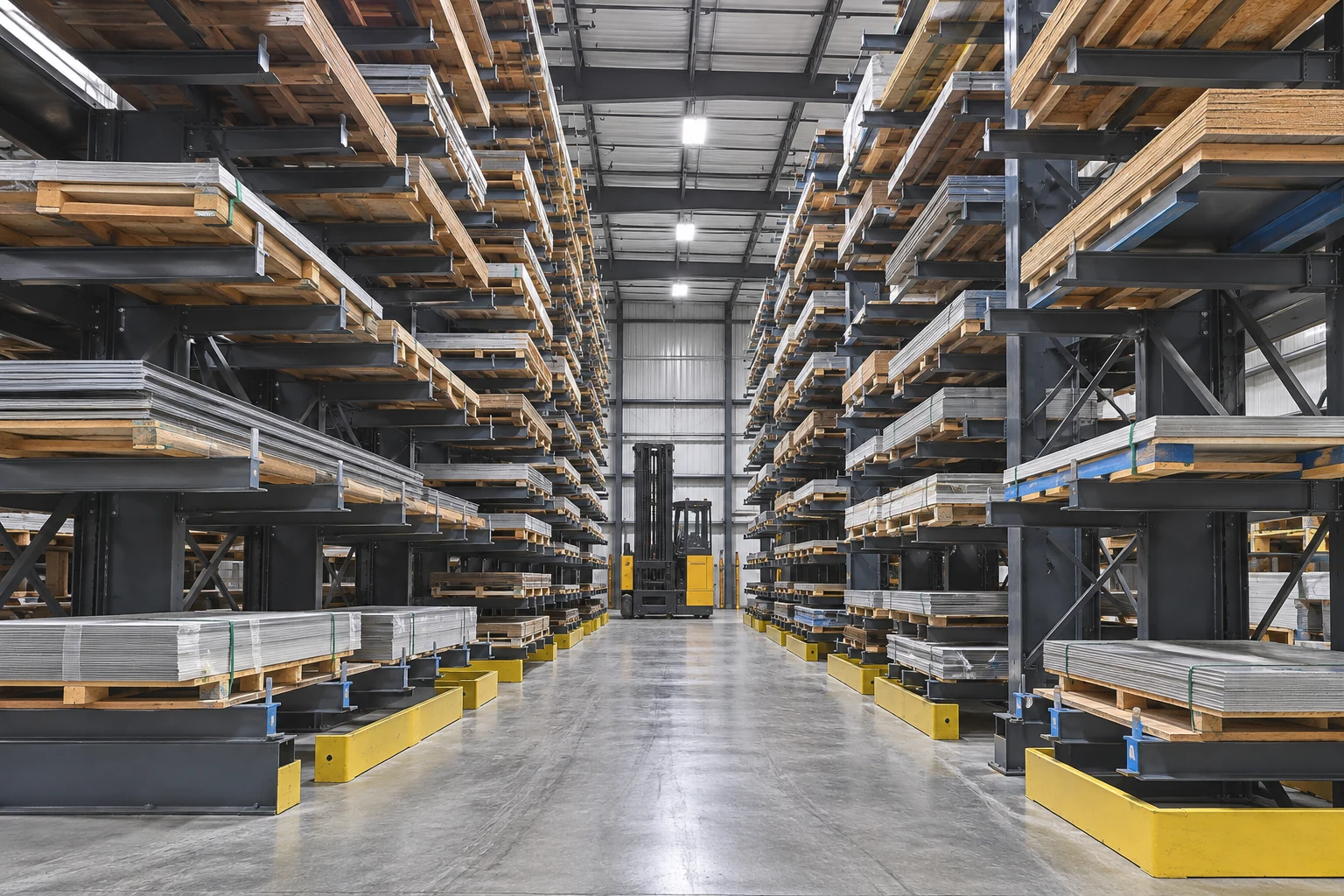

Identify the handling equipment and load

Give the rack supplier the proposed truck information and the dimensions of the largest handled loads. Explain the approach to each aisle, the picking sequence and how material enters and leaves the storage area. A truck's nominal width is not the complete operating envelope.

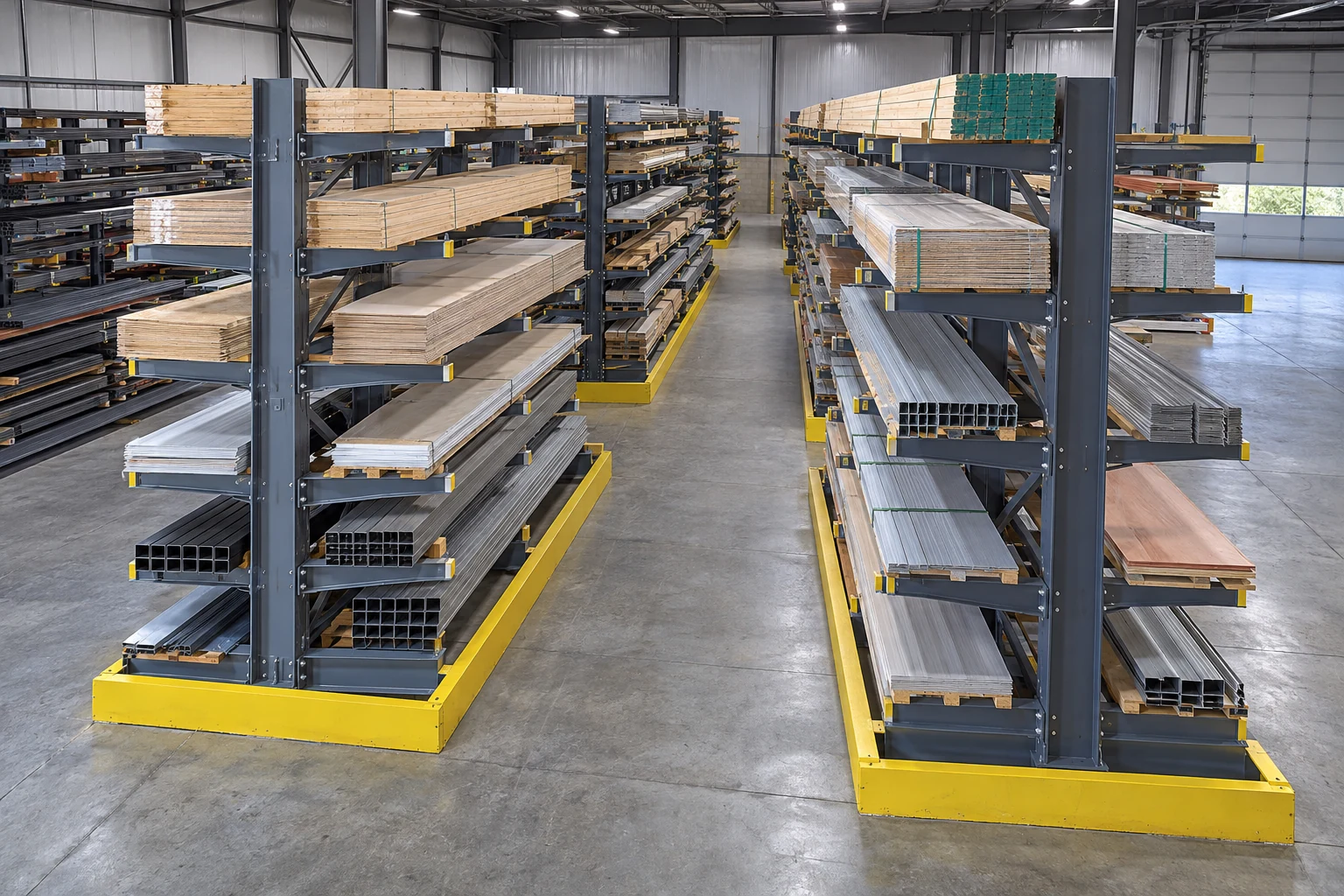

Review the aisle entrance and turning areas as carefully as the straight aisle. The operation needs enough room to align the load and enter the system as intended. Staging areas, doors and adjacent traffic can all affect that movement.

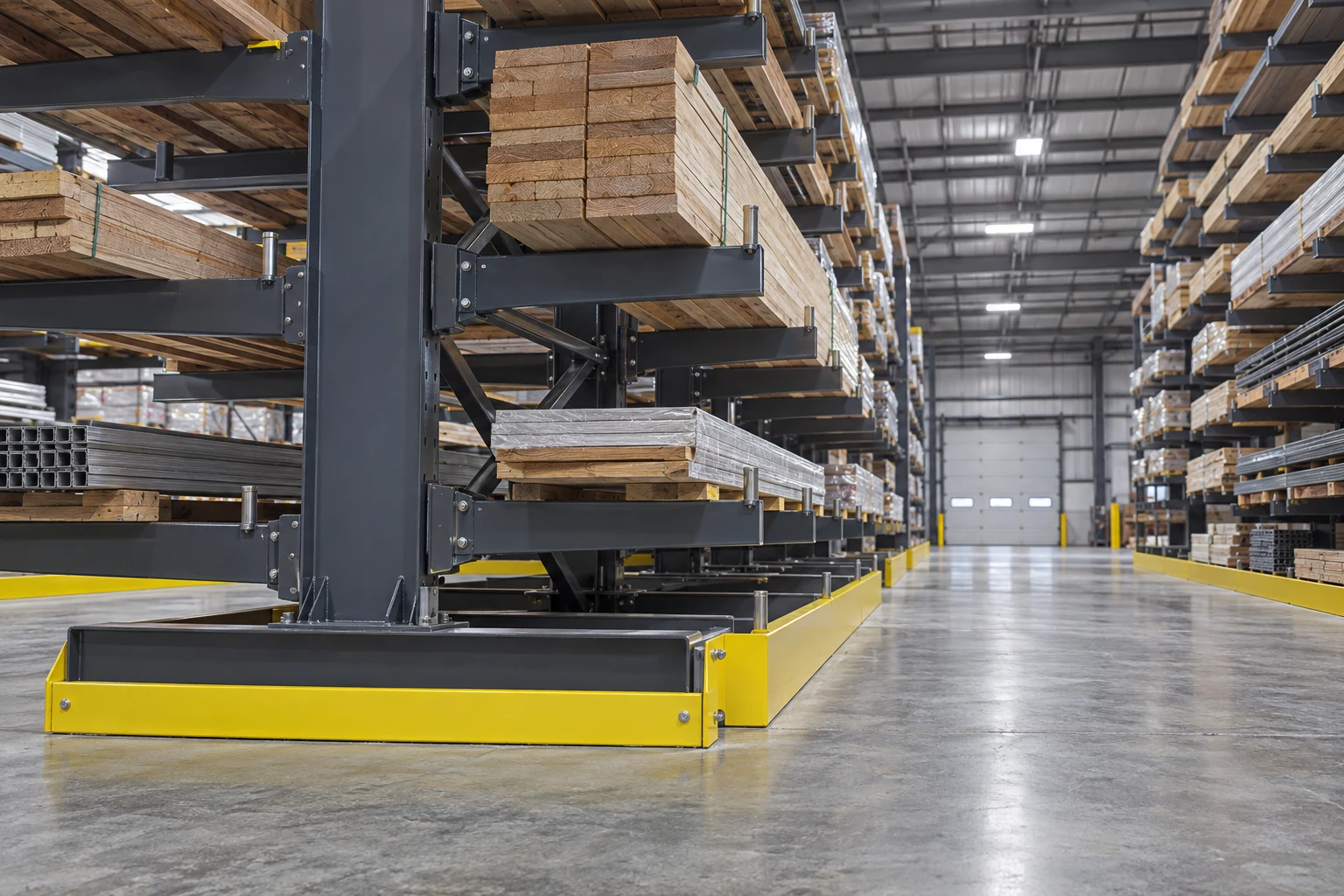

Understand the guide arrangement

Cogan describes its VNA cantilever system as designed for side-loader fork trucks, with aisle guide rails and end-of-aisle guardrails. The product page describes guide rails inserted into the bases or independently anchored to the floor, with site welding to form a continuous guide.

Those are configuration choices to resolve with the supplier and handling-equipment team. They are not a reason to adapt a conventional forklift to an arbitrarily narrow aisle. Confirm the compatibility and installation requirements of the whole arrangement.

Compare usable storage rather than theoretical density

Avoid treating a marketing statement about aisle reduction as a guaranteed increase for every facility. The actual improvement depends on the starting layout and the space needed for the selected equipment and loads.

Coordinate installation and commissioning

The guide system needs to match the approved rack and handling arrangement. Obtain the current drawings and installation requirements, and resolve floor conditions before installation. Field adjustments should be reviewed rather than made solely to achieve the desired aisle dimension.

At handover, make sure the operating team understands the intended load profile and equipment. Review changes to trucks or stock before assuming they are compatible with the existing aisles and guides. Storage density is valuable only when material can still be handled reliably.

Questions buyers ask

Can any forklift use a VNA cantilever aisle?

No. Confirm the handling equipment's compatibility with the rack, load and guide arrangement. Cogan describes its VNA system for side-loader trucks.

Is there one standard narrow-aisle width?

The required operating space depends on the equipment, load and system design. Obtain a coordinated layout.

Can guide rails be added to existing racks?

That requires a compatibility and site review. Do not assume that adding a guide makes an existing arrangement a suitable VNA system.

Product references and next step

See Cogan VNA cantilever racking. Send truck and load details with your layout enquiry.
