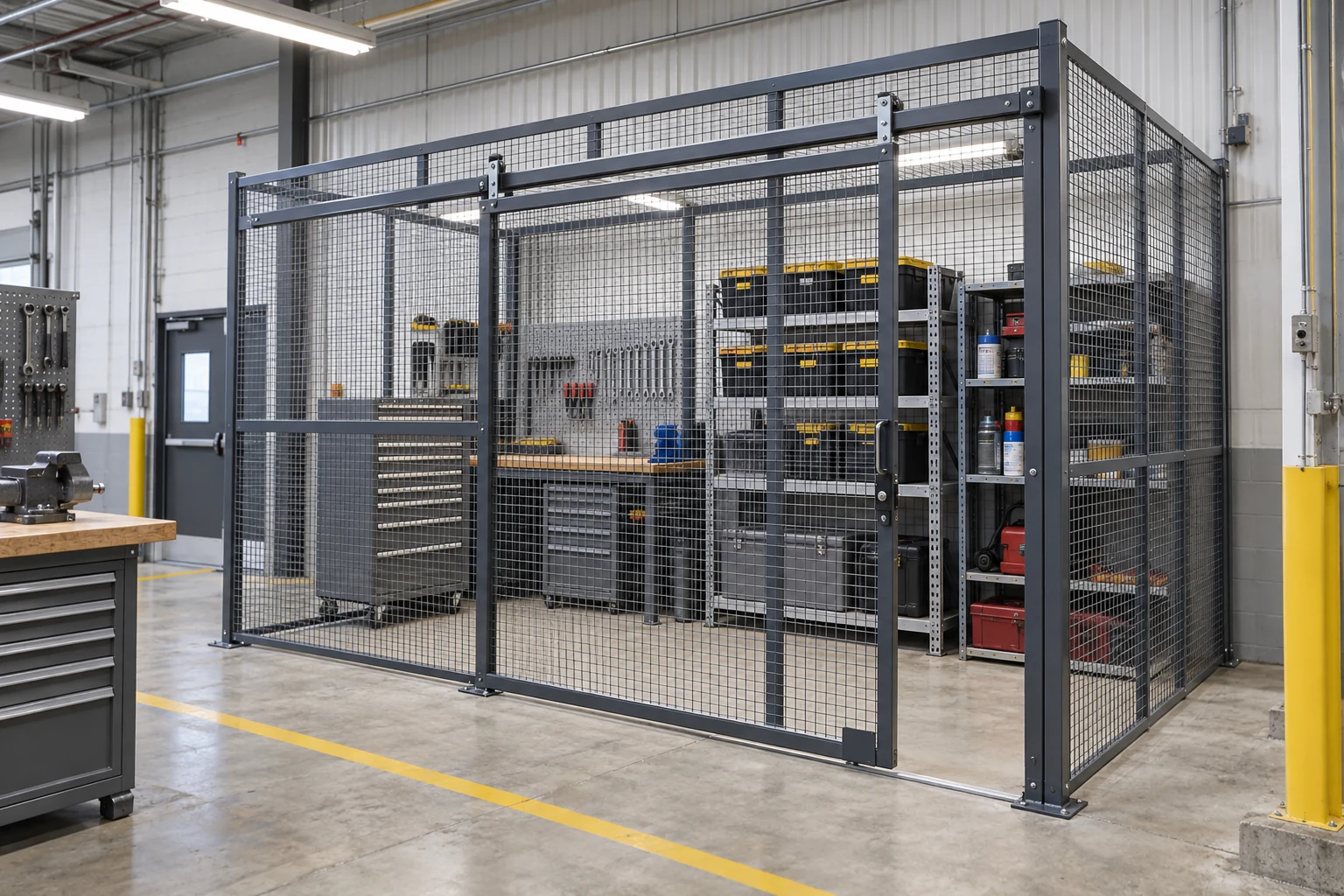

Tool Crib Layout: Planning a Secure Wire-Mesh Storage Area

A tool crib should control access to tools while making issue, return and inventory checks practical. Plan the working process before drawing the enclosure. The storage layout, service opening, staff access and security boundary should support the same process rather than compete for floor space.

Map the issue-and-return process

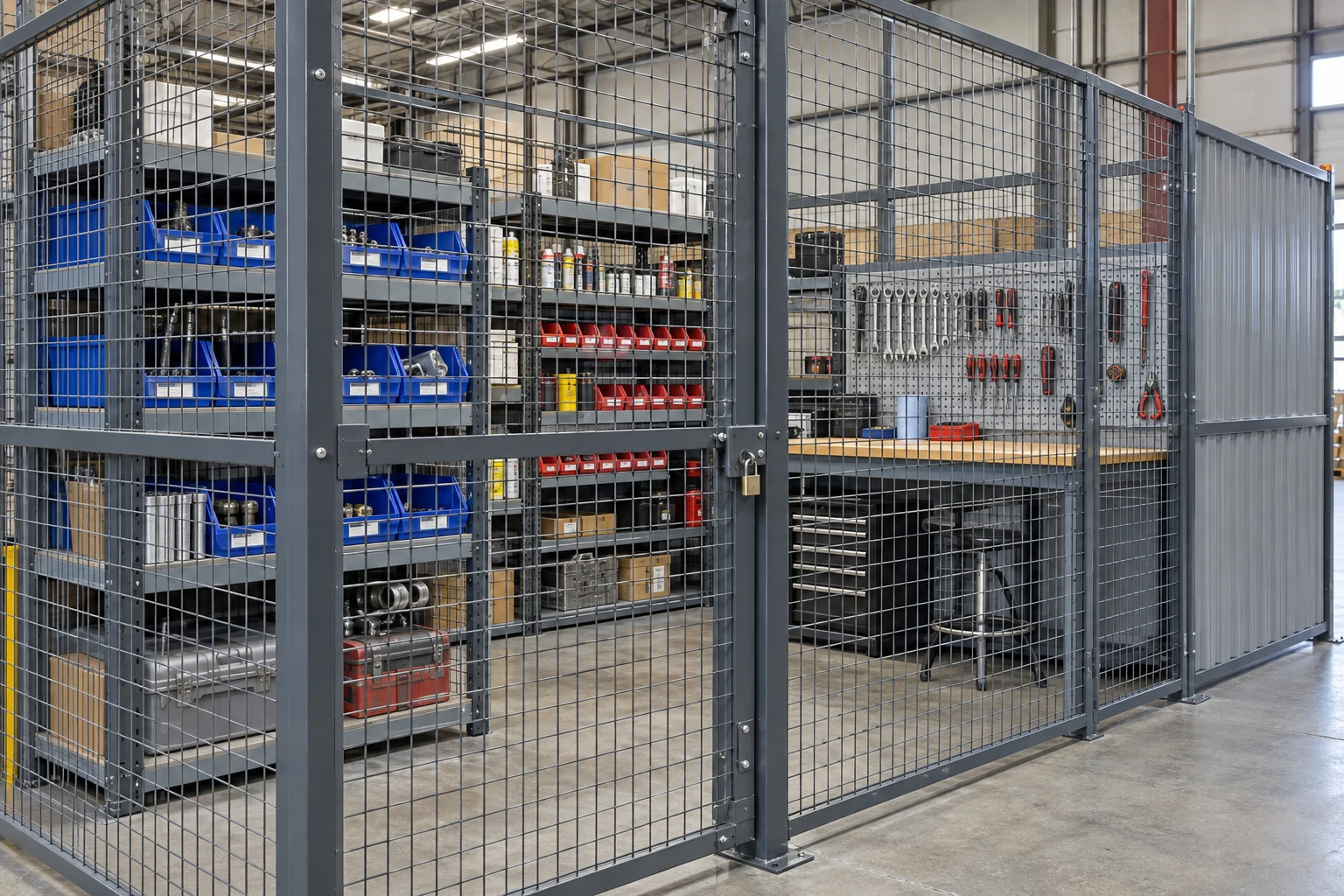

List the items stored, the people who issue them and the equipment used for replenishment. Separate everyday hand tools from large fixtures or items that need a cart or pallet. Identify where returned tools are checked before they go back into available stock.

Consider how employees queue or wait for service. A tool crib can be secure yet inconvenient if the service point opens directly into a busy travel route. Keep the waiting and transfer areas visible on the plan, including periods of higher demand at shift changes.

Choose access around the task

Cogan's partition gate range includes swing, sliding, Dutch and service-wicket options. A Dutch door can serve as an access door and a counter-style opening; a service wicket allows an exchange through the upper portion while the lower portion remains fixed. Select the arrangement that matches the issue process.

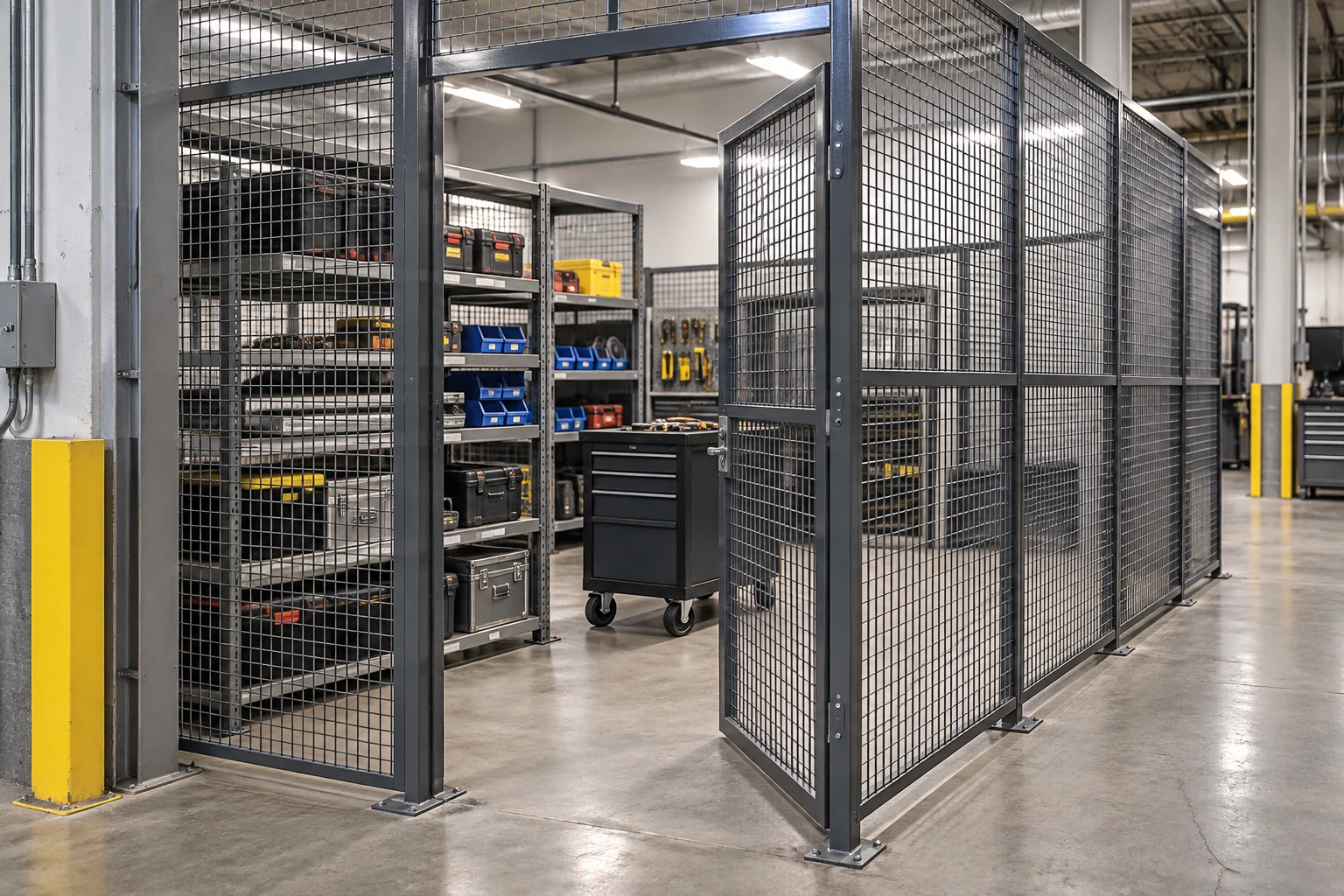

Larger replenishment loads may need a separate access opening. Size it for the load and handling equipment, then check the approach and internal aisle. A wide door is not useful if shelving immediately behind it prevents the required movement.

Organize the enclosure deliberately

Wire mesh provides visibility and allows light and air to pass through. Those features can help staff see the enclosed area, but they do not determine the entire security strategy. Review the top, bottom, doors and any interfaces with existing walls.

Define ownership after installation

Decide who controls keys or other access methods, who checks the enclosure and how damaged hardware is reported. Keep the gate specification available so repairs use appropriate components. If stock grows, review the new layout instead of allowing overflow to block doors or service space.

Cogan's Original Wire Mesh Partition uses a structural frame with welded wire mesh. Its enclosure and gate options provide a starting point for a configured tool crib. Final dimensions and support details should follow the actual site and workflow.

Questions buyers ask

Does a tool crib need a full entry door and a service wicket?

That depends on how tools are issued and how larger items enter. Some processes benefit from separate service and replenishment access.

Does wire mesh make the enclosure completely secure?

Security depends on the complete boundary, access arrangements and operating practices, not the panel material alone.

What should I include in the enquiry?

Provide the stock types, service process, largest replenishment load, dimensions and a floor plan showing nearby traffic.

Product references and next step

Review Cogan wire-mesh partitions and partition gates. Send your tool-issue workflow and layout with a quote request.
